Multi-Quadrant Analysis (5.0.7)

2982298

Direct Effects and Standardized Direct Effects

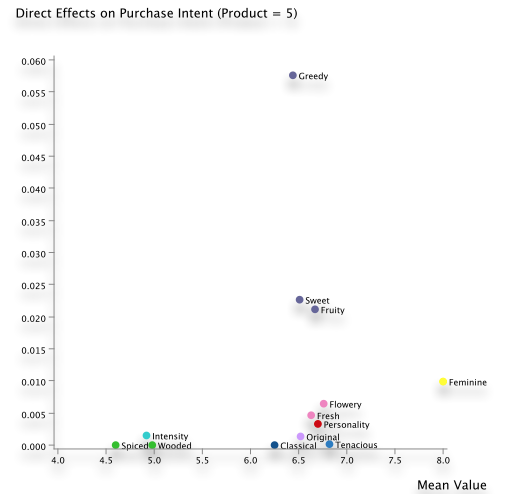

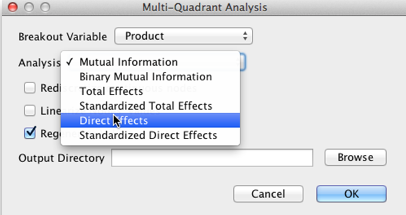

Direct Effects and Standardized Direct Effects are now available in the Multi-Quadrant Analysis

2982299 2982300

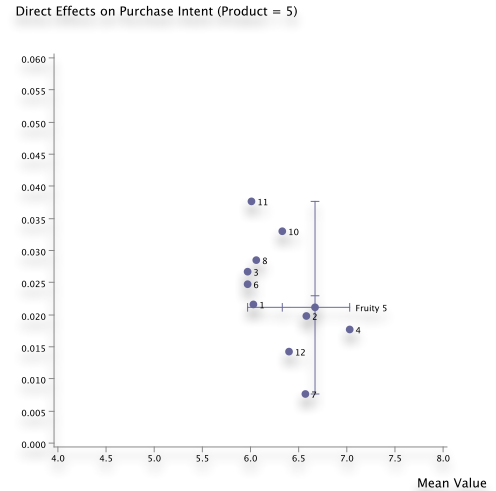

A vertical scale is now available in all the Multi-Quadrants to visualize the range of variations of the importance over all the breakout variable states

2982301

Re-discretization

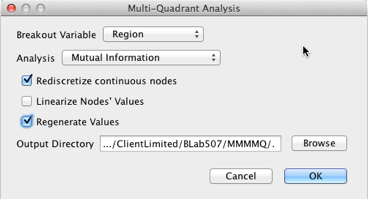

It is now possible to automatically re-discretize the continuous variables for each dataset defined by the breakout variable states.

2982302

This is particularly useful when the distributions of variable subsets differ substantially from the overall dataset.

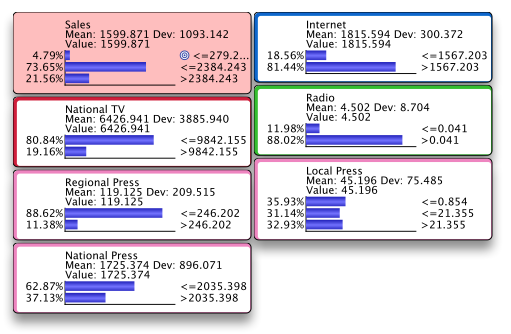

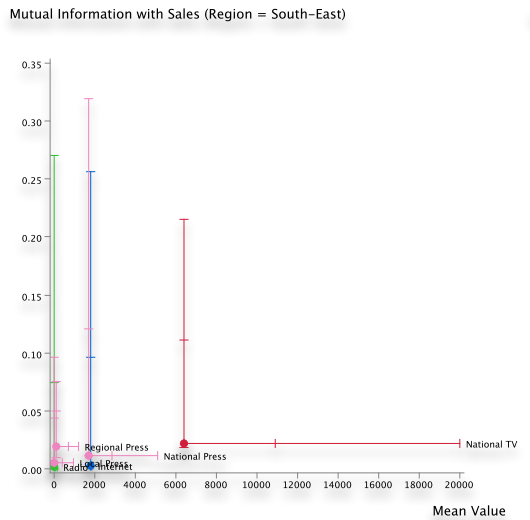

  • Without re-discretization

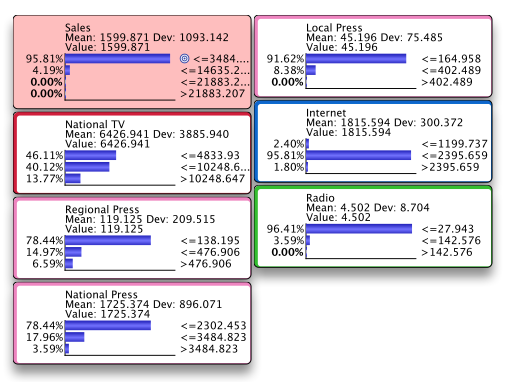

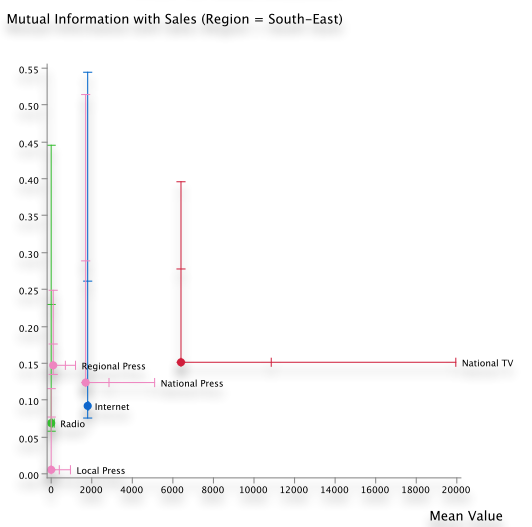

  • With re-discretization
2982304 2982308 2982306 2982309

The discretization algorithm applied for this automatic re-discretization is either the one used during the original data import or the one defined during the re-discretization.

Please note that any automatic discretization algorithm used in the context of manual discretization within the Data Import Wizard creates fixed bins, which will be kept even when performing a re-discretization.
