Neighborhood Analysis (9.0)
Context

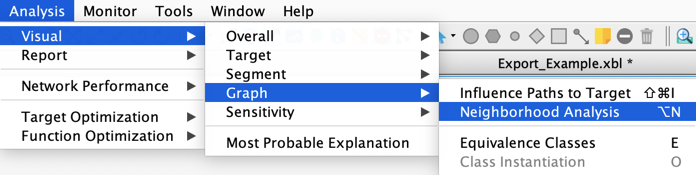

Visual | Graph | Neighborhood Analysis
This analysis tool allows you to identify nodes based on their properties in the Directed Acyclic Graph.
History
Neighborhood Analysis (opens in a new tab) was first updated in version 5.1 (opens in a new tab).
New Feature: Observable Markov Blanket
The Observable Markov Blanket is recursively defined as:
- the observable nodes of the Markov Blanket,
- the nodes that belong to the Observable Markov Blanket of the Not Observable nodes of the Markov Blanket.

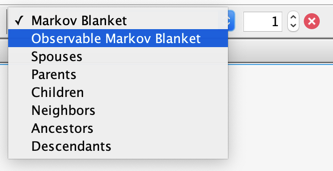

This new feature allows you to highlight the nodes that belong to the Observable Markov Blanket of the selected node. When nodes from the Markov Blanket are Not Observable, the Observable Markov Blanket of these nodes is selected instead.
These nodes can also be directly selected via the Node Contextual Menu.
Example
