Correlations with a State of the Target Node

This visualization shows, for each node, two kinds of information relative to the Target Node: the type of probabilistic relationship between this variable and the Target Node, and the information brought by each node to the knowledge of the selected Target State.

2556605

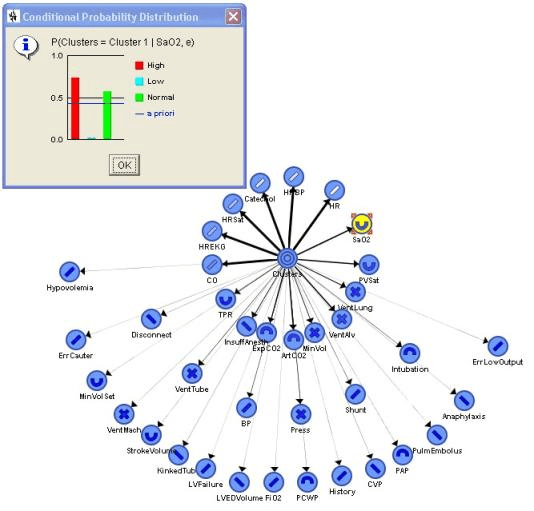

The symbol inside the node corresponds to the pattern of the probability distribution of the Target State (CLUSTERS), conditioned on each value of this node. This symbol schematizes the probability distribution curve; see the pattern of node CATECHOL relative to the associated distribution, obtained using the Context Menu of node CATECHOL: Influence Analysis wrt Target Node.

The symbol 2556604 indicates that the distribution curve does not correspond to any of the four basic patterns.

Correlations with the Target NodePictograms
