Cluster Interpretation: Segment Profile Analysis

Background & Context

• On this page, we present the Segment Profile Analysis for cluster interpretation as an alternative to Most Relevant Explanations for Cluster Interpretation.
• To provide further context for Most Relevant Explanations for Cluster Interpretation, we compare several other approaches that can help interpret individual Clusters:
  • Setting Evidence for Cluster Interpretation: Posterior Distributions, Relationship with Target Node, Mosaic Analysis, Posterior Mean Analysis, Segment Profile Analysis, Histograms, Tornado Diagrams,
  • Optimization for Cluster Interpretation: Dynamic Profile, Target Optimization Tree
• More specifically, we compare all these approaches with regard to characterizing the state Cluster 3 of the Cluster Node  in the reference network.
• All analyses and instructions on this page refer to this reference network, which you can download here:
  MaleClusters.xbl

Segment Profile Analysis

• We start the Segment Profile Analysis by selecting Main Menu > Visual > Segment > Profile:
• A Settings window opens up, in which we need to specify the Breakout Variable. In our case, we want to see the values of the manifest nodes broken out by the Clusters C1 through C5.

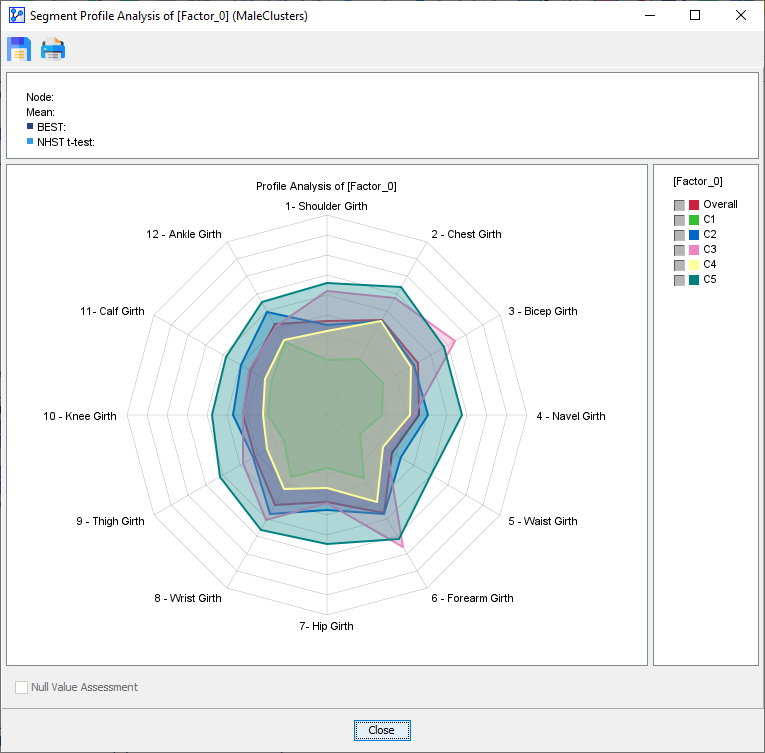

• The default view of the Segment Profile Analysis window shows a Radar Chart on which all Clusters are plotted plus the population mean for reference.

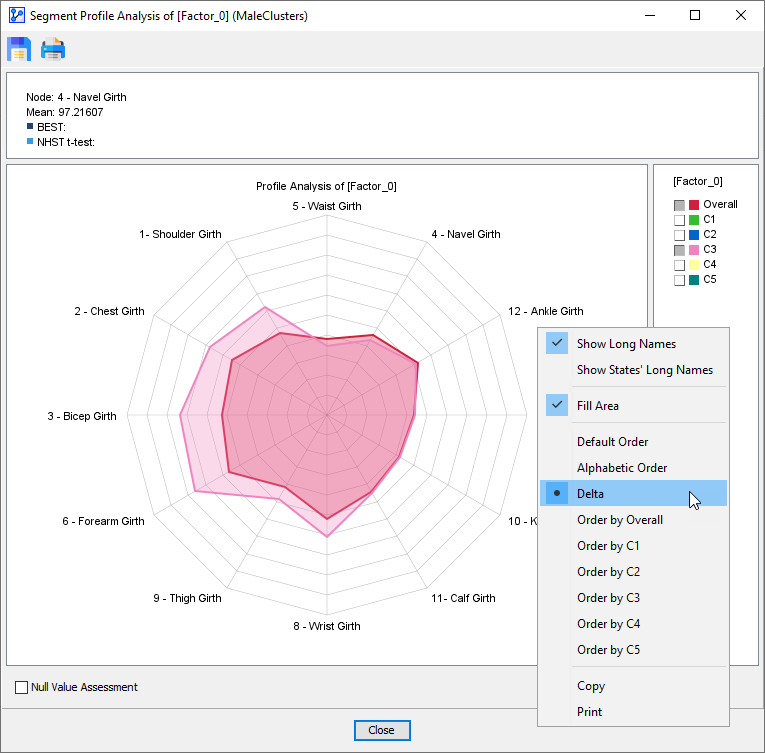

• Given our interest in C3, we select to display C3 versus Overall. Additionally, we sort the nodes in increasing according to their delta between C3 and Overall.

• This shows how C3 Cluster members start below-average at 12 o'clock, remain around the average between 2 and 5 o'clock, and then stay well above average starting at 6 o'clock.

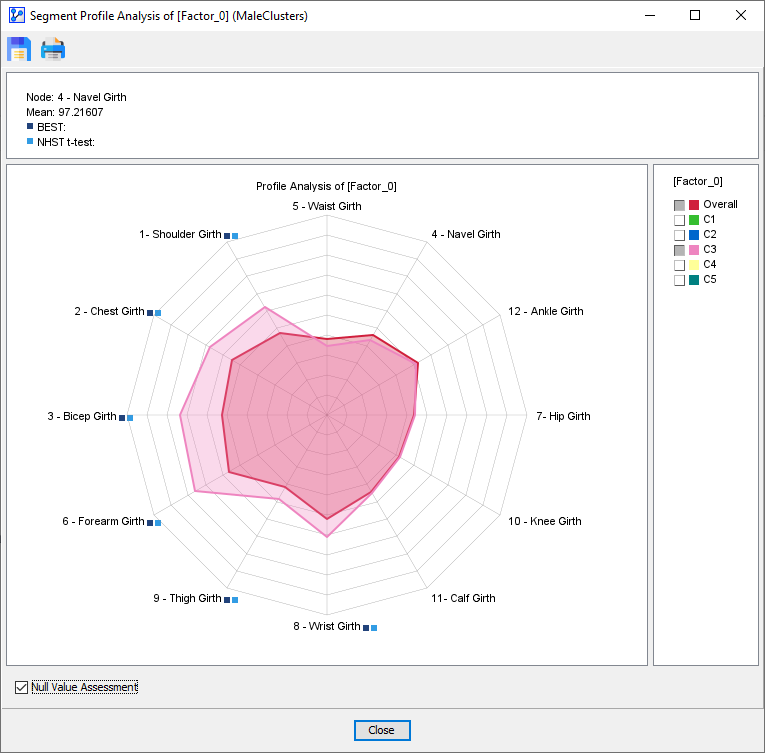

• Additionally, by checking Null Value Assessment, BayesiaLab performs significance testing.

• Small blue squares are added to the node names, if the Null Hypothesis is rejected for the difference between mean values:
  • NHST t-test, a type of frequentist test.
  • BEST, a Bayesian test.
• Note that significance testing is only available when two curves are selected.
• For further details on these significance tests, please see Segment Profile Analysis.
