Badge Style

Context

• The Badge style is a recent addition to the Node Styles available in BayesiaLab.
• The Badge style creates a horizontal frame around the Node Name and adds an extra line for a Node Comment, if available.

• The Badge style displays the Node Color as horizontal bars along the top and bottom of the frame.
• This style provides a clear and uncluttered layout, emphasizing Node Names.
• This section demonstrates how to apply and customize the Badge style for nodes.

Usage

1. Select the node(s) you want to modify.

2. Apply the Badge style using one of the following methods:

   • Select Node Context Menu > Properties > Node Style > Badge.
   • Select the Badge icon from the dropdown menu in the Toolbar.

   • Select Main Menu > View > Node Appearance > Badge.

3. For the Badge style, there are numerous customization options.

4. To access the full set of options:

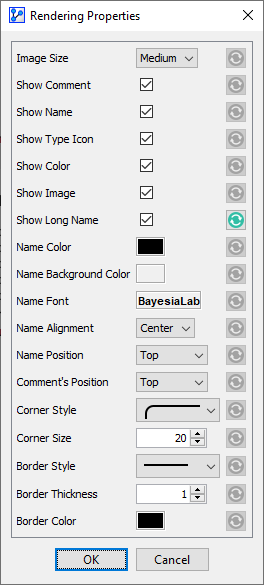

   • Select Node Contextual Menu > Properties > Rendering Properties > Edit All.
