Generate Class Report

Context

• Generate Class Report is one of the functions available in the Class Editor.
• A Class Report is a practical summary of all associations between nodes and Classes.

Usage

• There are multiple paths to access Generate Class Report:

  • Select Main Menu > Edit > Edit Classes > Generate Class Report.
  • Select Graph Panel Context Menu > Edit Classes > Generate Class Report.
  • Click on the Class indicator in the Status Bar and click Generate Class Report.

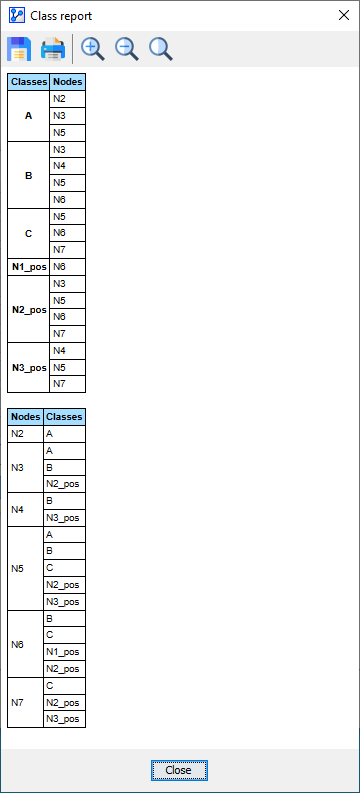

• The generated Class Report contains two tables with two columns each:

• The first table features Class in the left column and Nodes in the right column:

  • The Classes column is sorted alphabetically.

• The second table features Nodes in the left column and Classes in the right column:

  • The Nodes column is sorted alphabetically.
  • This layout is particularly helpful for detecting nodes that are assigned to multiple Classes by accident.

• As with all reports in BayesiaLab, you can save the report in HTML format, which can subsequently be opened in spreadsheet software, such as Excel, for further formatting or editing.

Workflow Illustration
