Atopic Dermatitis
Generated Causal Bayesian Network for Atopic Dermatitis Analysis
Do not hesitate to right-click on the image and open it in a new tab to zoom in.
Atopic Dermatitis, commonly known as eczema, manifests as red, itchy, and occasionally painful rashes, affecting both children and adults to varying degrees.
This section examines the many facets of atopic dermatitis, where genetic, environmental, and immunological factors converge to influence its development and progression. To better understand this complex disease, we use Hellixia to generate causal Bayesian networks, which provide a structured framework for deciphering cause-and-effect relationships.
But first, we'll start with a semantic analysis of the domain to get an overview of the main concepts, variables, and relationships in the field of atopic dermatitis.
Semantic and Hierarchical Semantic Networks
We create the node "Atopic Dermatitis" and then go through our usual workflow for creating a semantic network and then a hierarchical semantic network (see previous sections, e.g., Hamlet) to perceive the semantic landscape surrounding atopic dermatitis and lay the foundations for a deeper understanding of its underlying dynamics.

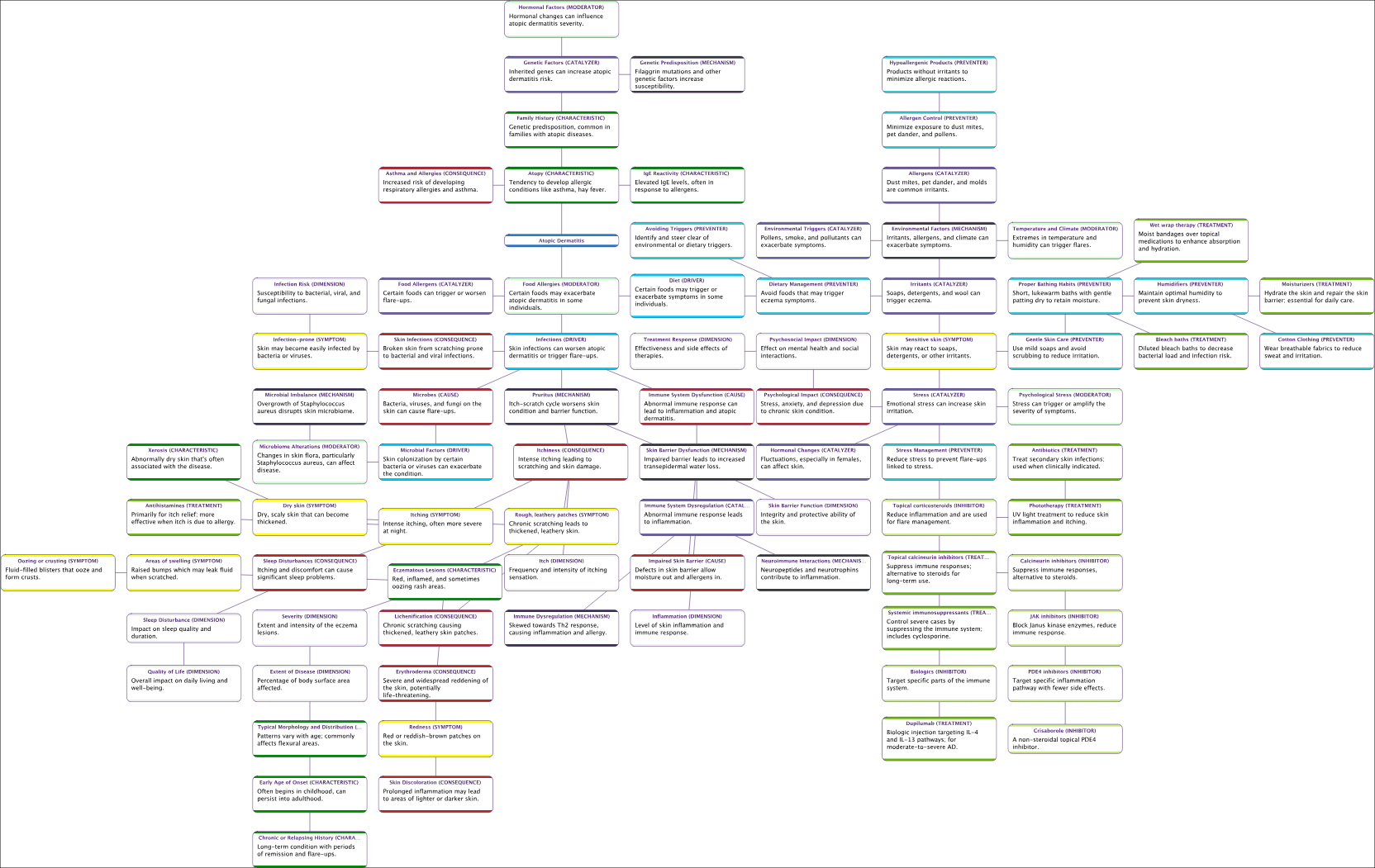

Atopic Dermatitis - Semantic Network - The links represent semantic relationships between node names and their associated comments
Atopic Dermatitis - Semantic Network - Node Force

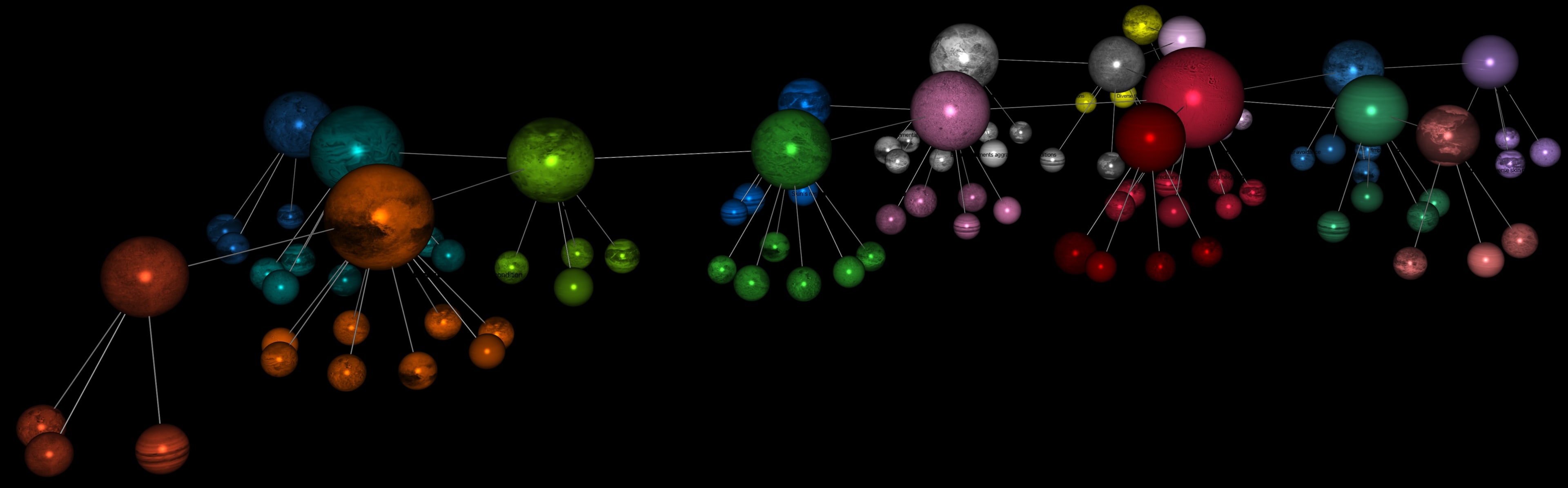

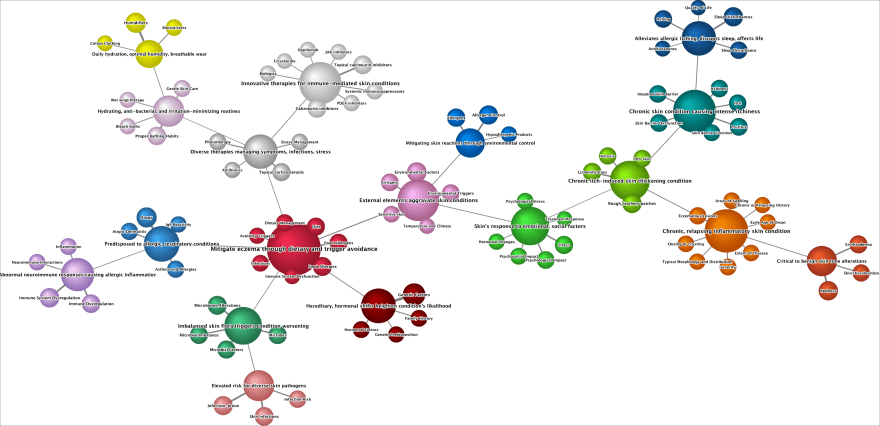

Atopic Dermatitis - Hierarchical Semantic Network - 3D Representation - Upper-Level Nodes Represent Latent Variables Summarizing Their Associated Manifest Variables
Atopic Dermatitis - Hierarchical Semantic Network - 2D Representation
We finally select the factors only (i.e., we focus on the higher level of this hierarchical network), and use the Hellixia Report Analyzer to generate a concise summary of the Relationship Analysis Report.

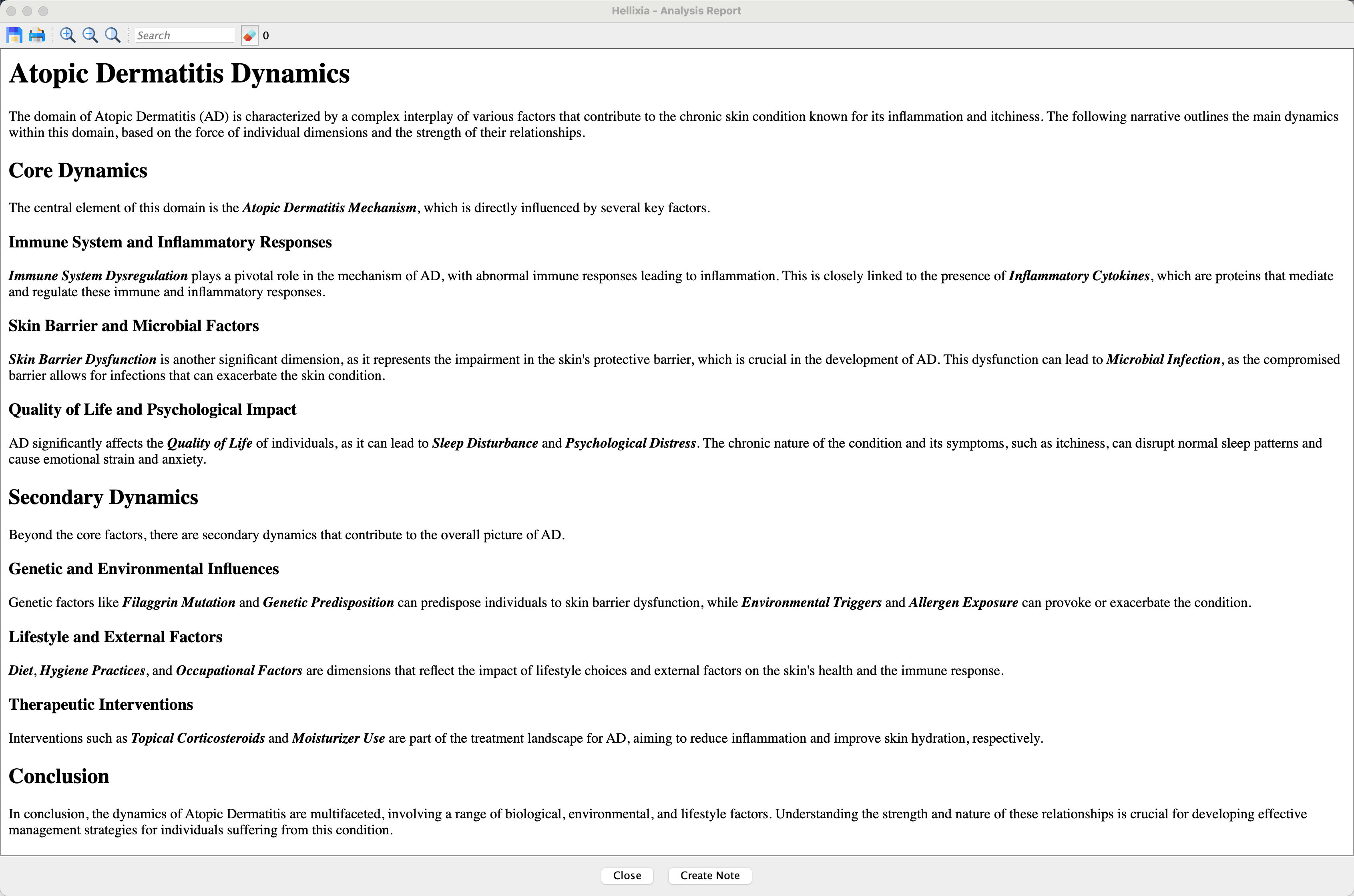

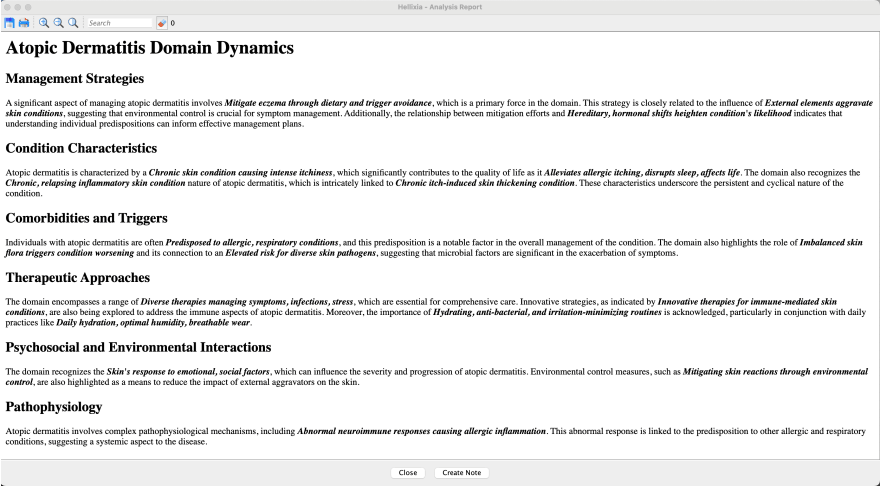

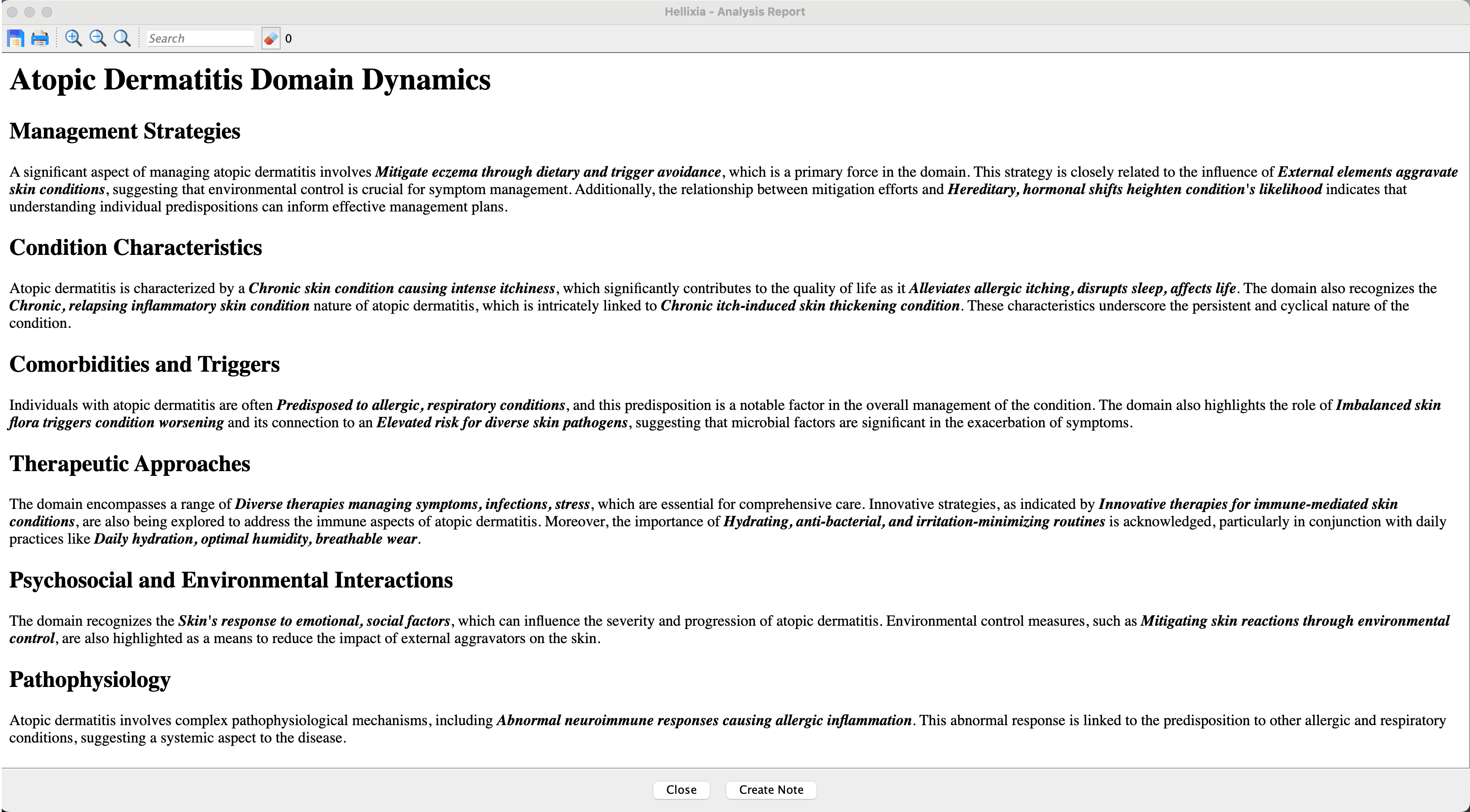

Report Generated from Analyzing Associations Between Latent Variables
Causal Network Generator
Having gained an overall understanding of the domain through semantic networks, we now move on to the construction of Causal Bayesian Networks using Hellixia's new capabilities that will be released in BayesiaLab 11.2.
Atopic Dermatitis Mechanism
We start by creating a node called "Atopic Dermatitis Mechanism", then select the Causal Network Generator feature.

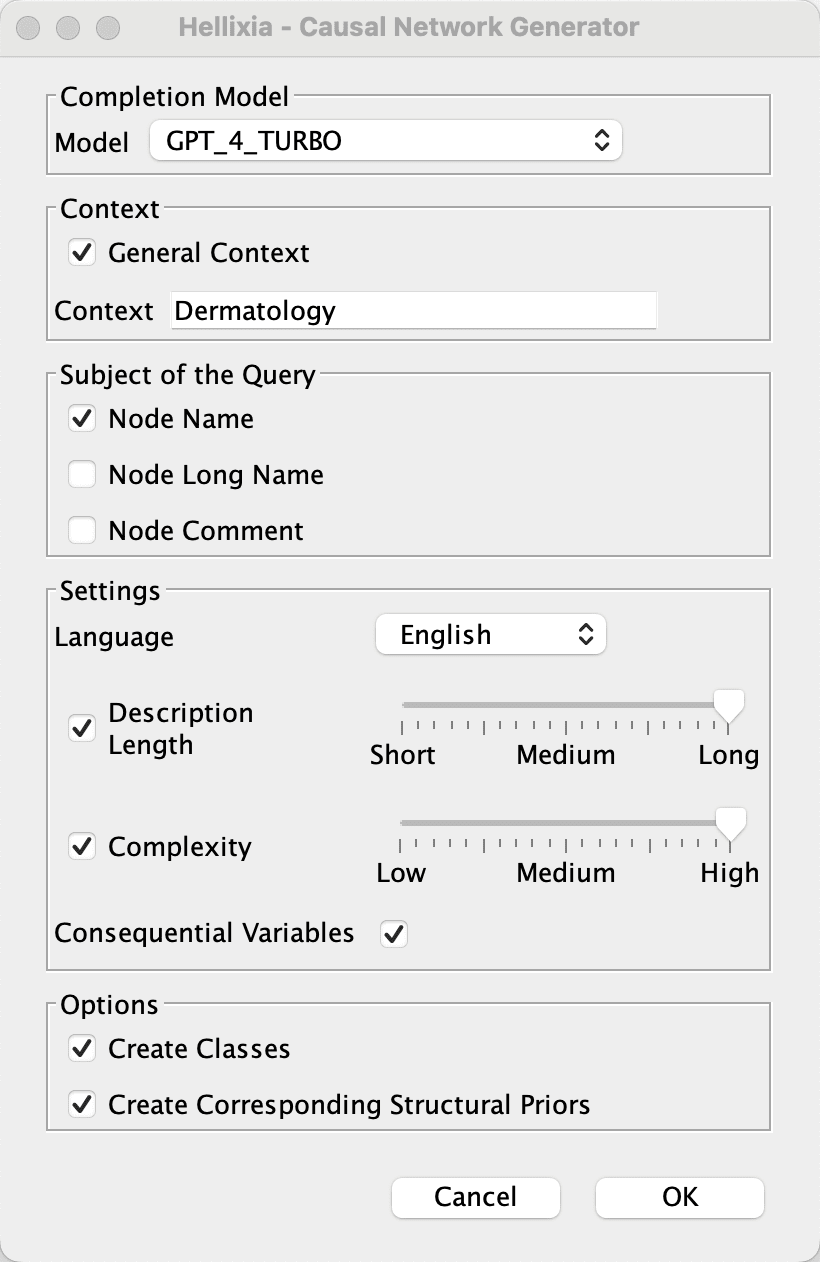

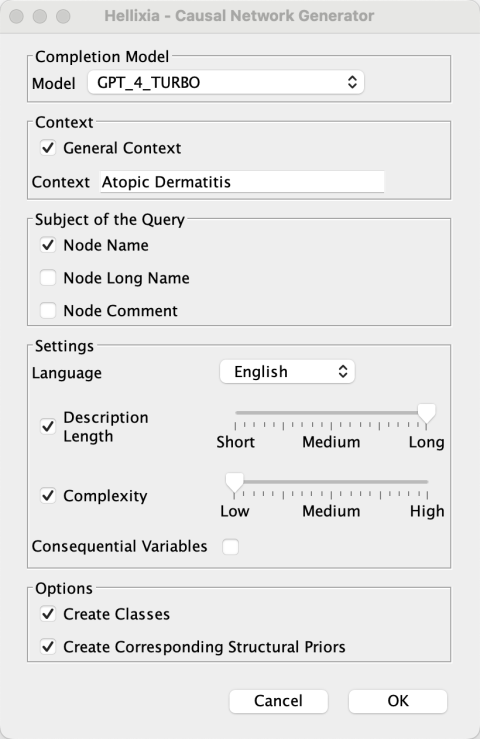

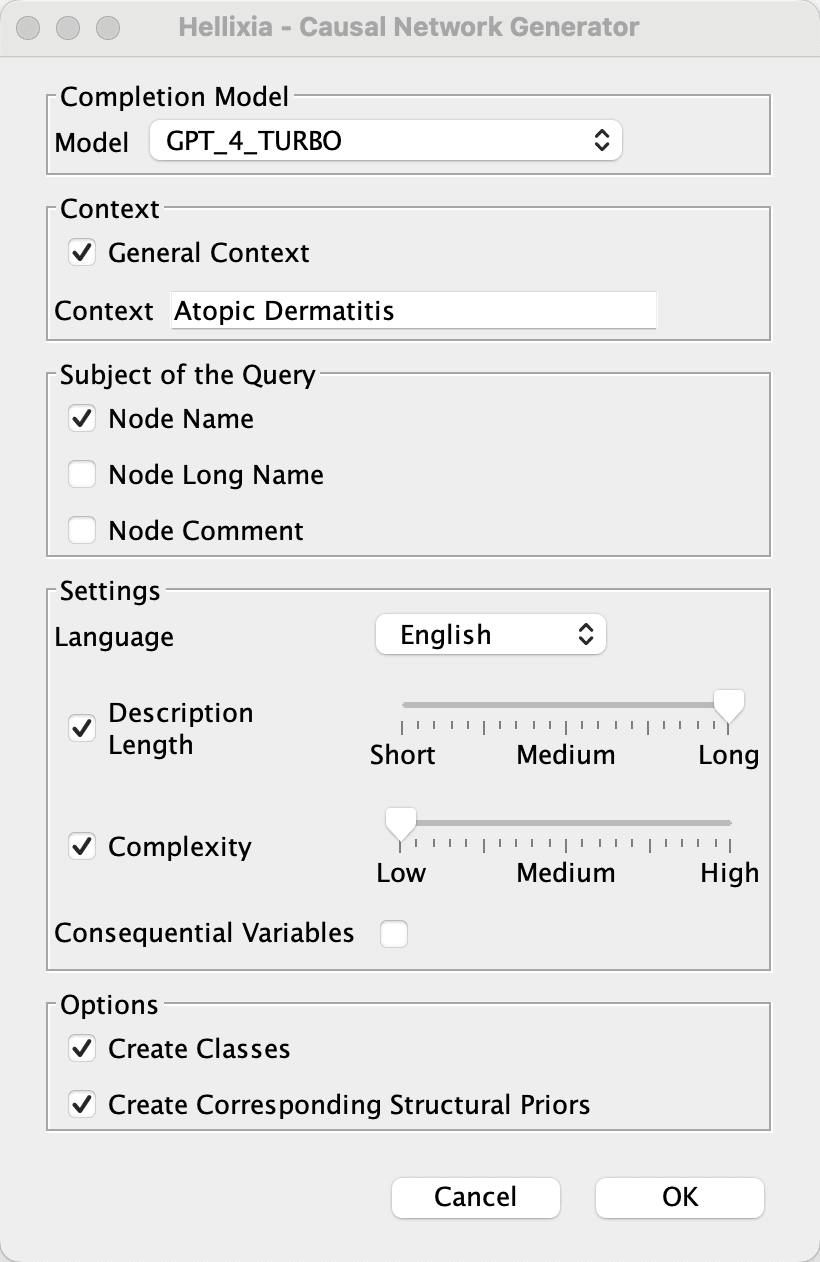

Causal Network Generator Dialog
After one or two minutes (the prompt is indeed quite complex), we obtain a fully specified Causal Bayesian Network (graph and probabilities). This network is characterized by causally oriented arcs, each accompanied by a concise explanation of the causal relationship and an estimate of the causal effect, scaled between -100 (shown in red) and 100 (shown in blue). To translate these causal effects into conditional probability tables, we use a new BayesiaLab formula, DualNoisyOr(), specially designed to integrate positive and negative effects between Boolean variables.

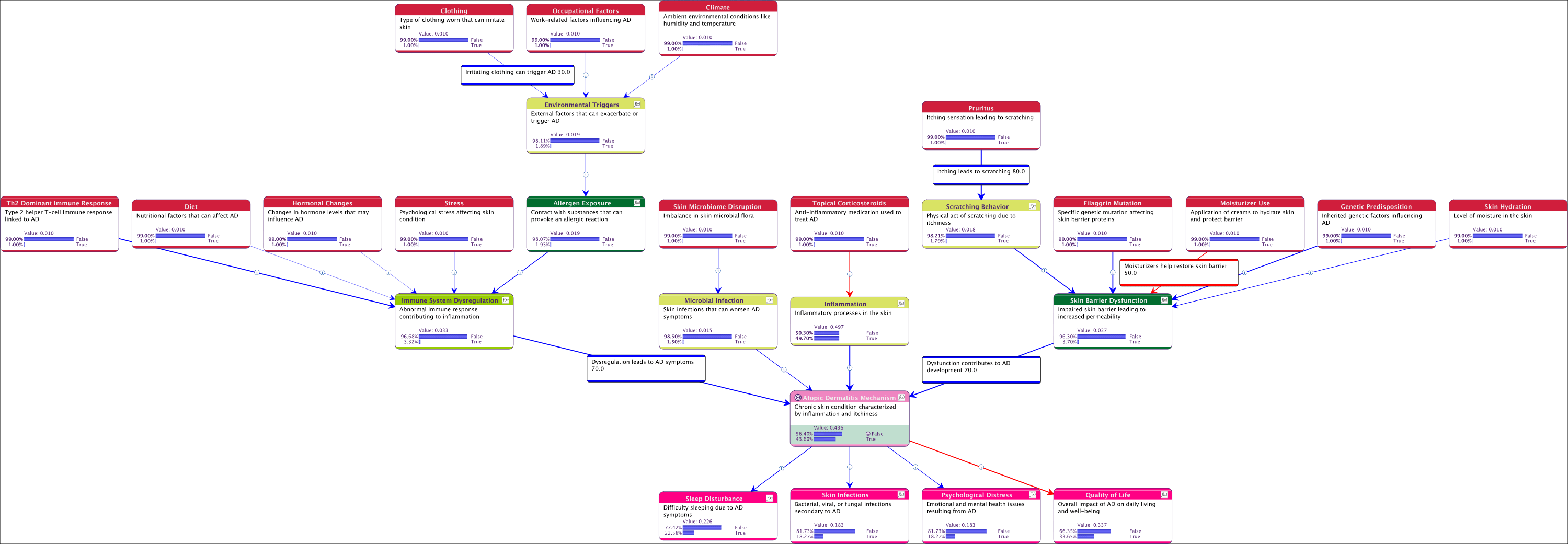

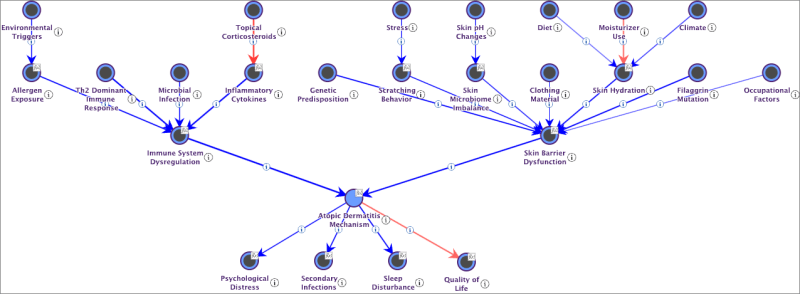

Causal Bayesian Network generated by Hellixia for Atopic Dermatitis Mechanism

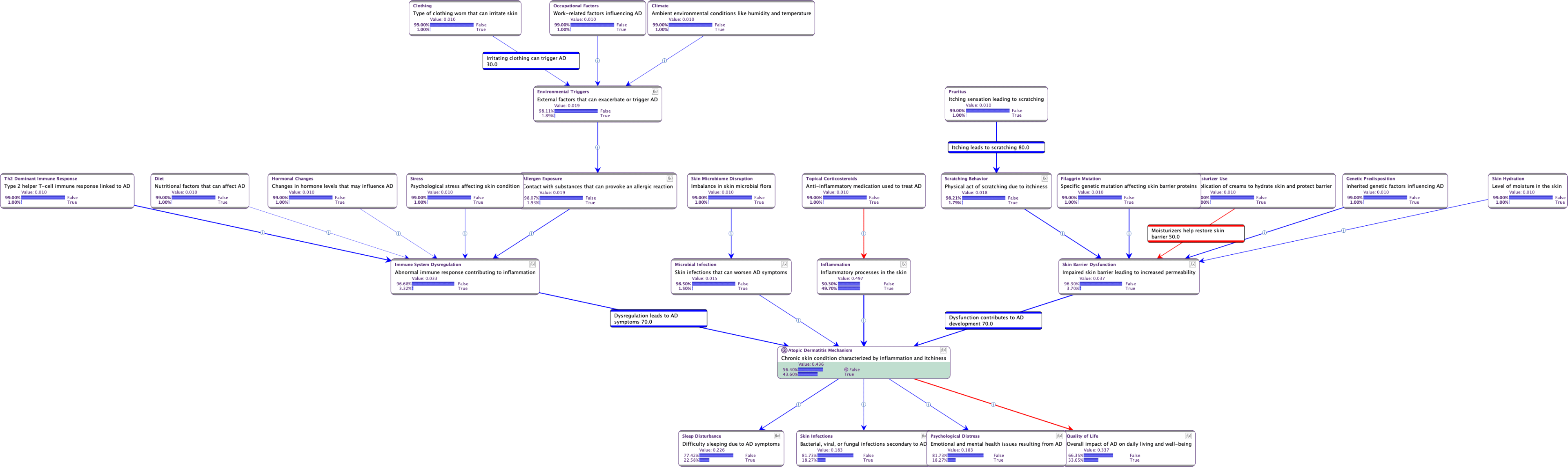

Generated Causal Bayesian Network with Monitors and Comments associated with some Arcs
Naturally, the networks generated by Hellixia MUST undergo rigorous evaluation by Subject-Matter Experts. This verification is crucial not only from a qualitative point of view to ensure that the network accurately represents real causal relationships but also from a quantitative point of view to confirm the relevance of the suggested causal effects.
Microbial Infection
Let's delve further into this domain by exploring the underlying causes of "Microbial Infection." To do this, we select the respective node in the network and proceed to the Causal Network Generator.

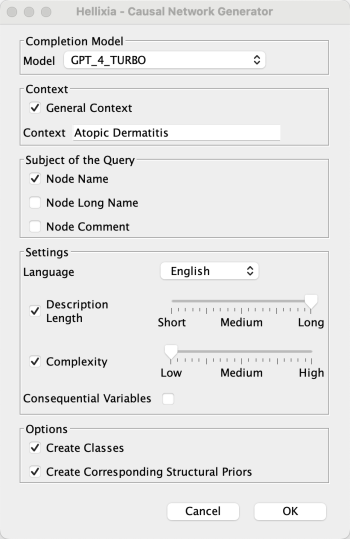

Causal Network Generator Dialog: Low Complexity Network without Consequential Variables
Displayed below is the generated causal network, showcasing the expanded view with detailed aspects of Microbial Infection. The yellow nodes are common to both the original and expanded networks, the grey nodes represent the original network nodes only, and the red nodes indicate the newly added dimensions specific to microbial infection.

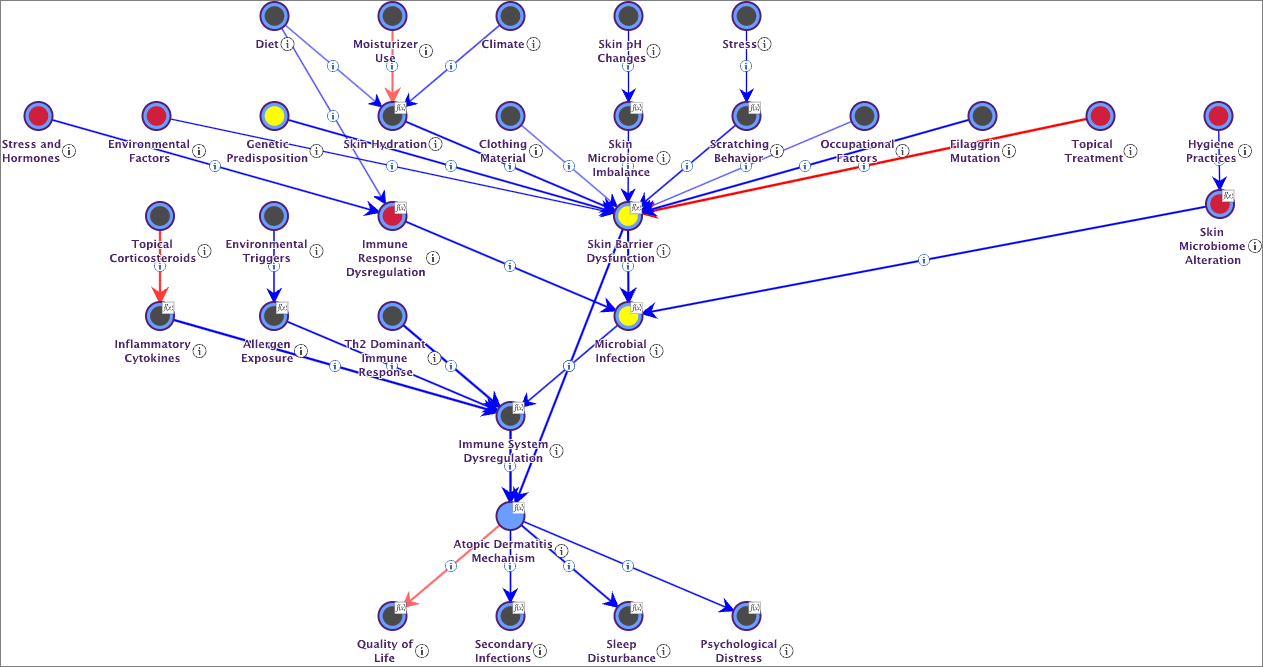

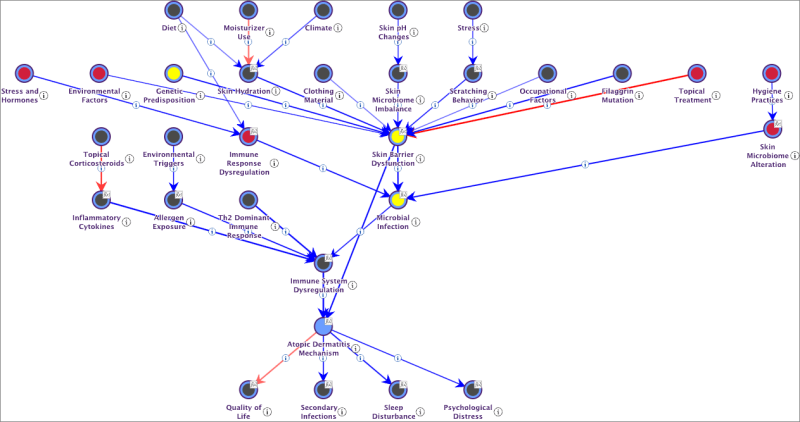

Expanded Network Highlighting the Detailed Aspects of Microbial Infection
We finally use the Hellixia Report Analyzer to generate a concise summary of the (Causal) **Relationship Analysis Report. **
Report Generated from Analyzing the Causal Relations
Causal Relationships Finder
We will now adopt a different workflow to construct a Causal Network for Atopic Dermatitis. We start by using Hellixia's Dimension Elicitor to identify relevant dimensions. With these nodes generated, we diverge from our usual practice of generating embeddings for semantic networks. Instead, we utilize Hellixia's new Causal Relationships Finder feature to automatically create a Causal Network based on our set of selected nodes.
We select a range of keywords to guide the Dimension Elicitor process in Hellixia, encompassing various aspects of the domain under study. These keywords include 'Accelerators,' 'Catalyzers,' 'Causes,' 'Drivers,' 'Mechanisms,' 'Consequences,' 'Symptoms,' 'Inhibitors,' 'Moderators,' 'Preventers,' and 'Treatments.'

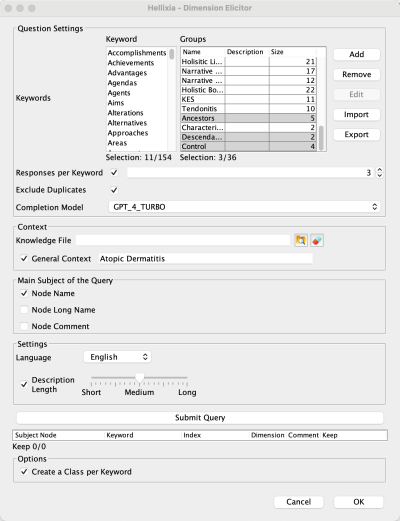

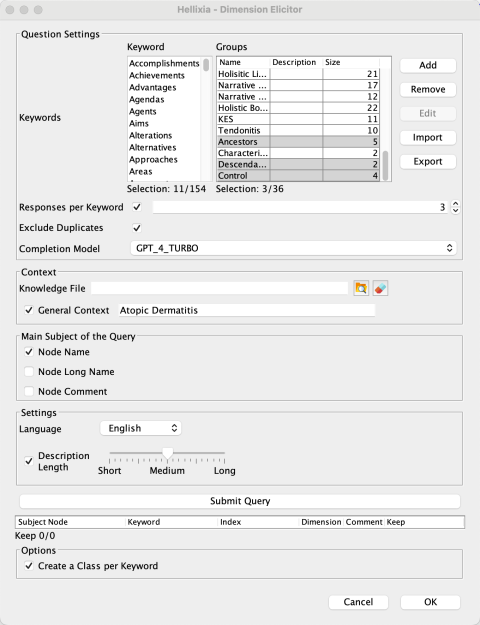

Dimension Elicitor Dialog to Find the Top 3 Ancestors, Descendants and Control Variables

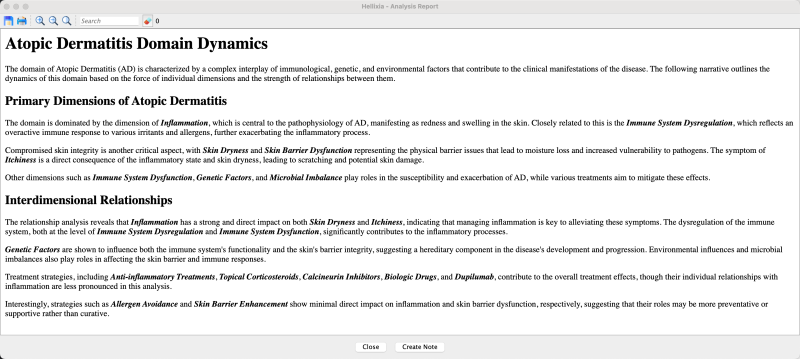

Report Generated from Analyzing the Causal Relations
We run the Causal Relationships Finder on the nodes elicited for the Atopic Dermatitis Mechanism. This tool examines potential causal connections among these nodes and, if required, generates latent variables to enhance the network's explanatory power.

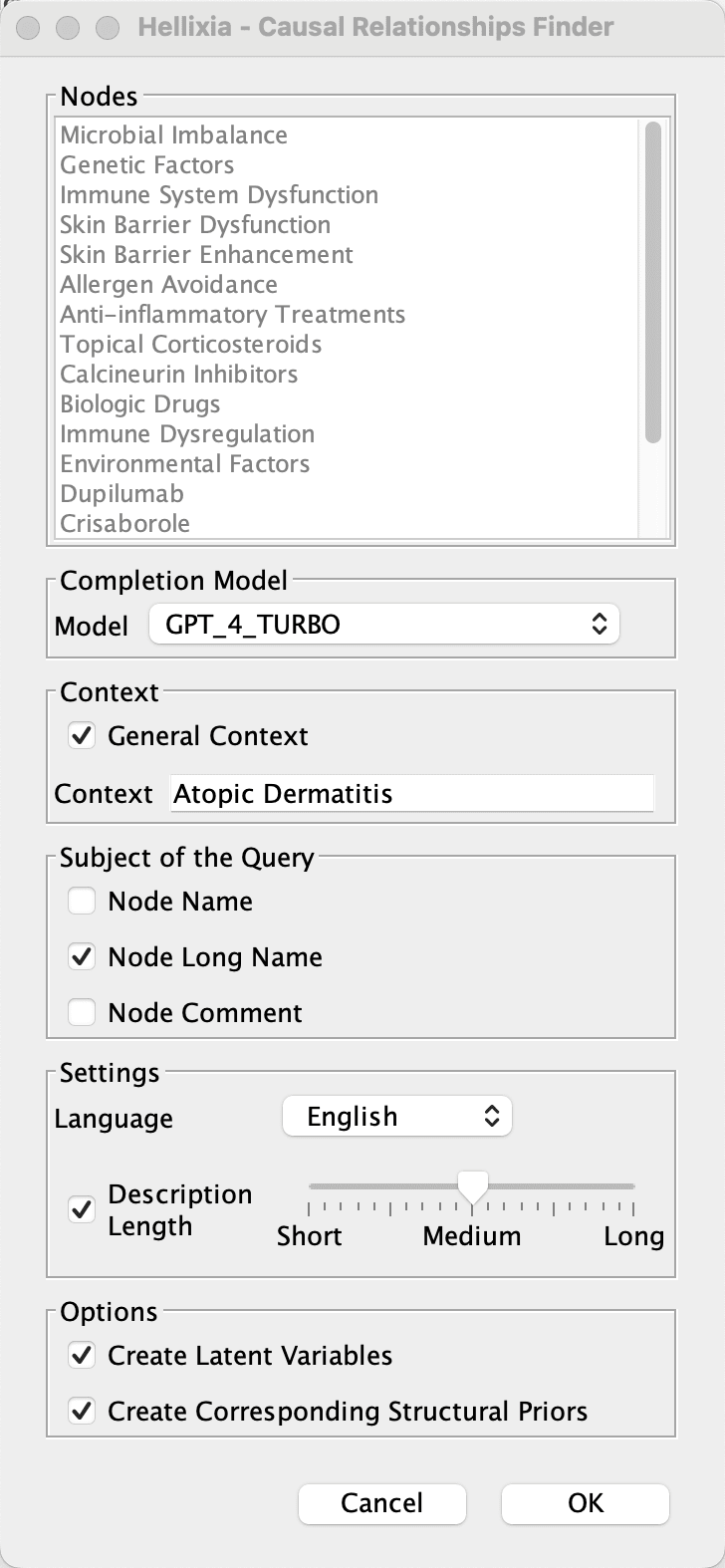

Causal Relationships Finder Dialog
Similar to the Causal Network Generator, the tool does more than identify causal links; it also quantifies the causal effects, which are represented on a scale ranging from -100 (indicated in red) to 100 (indicated in blue).

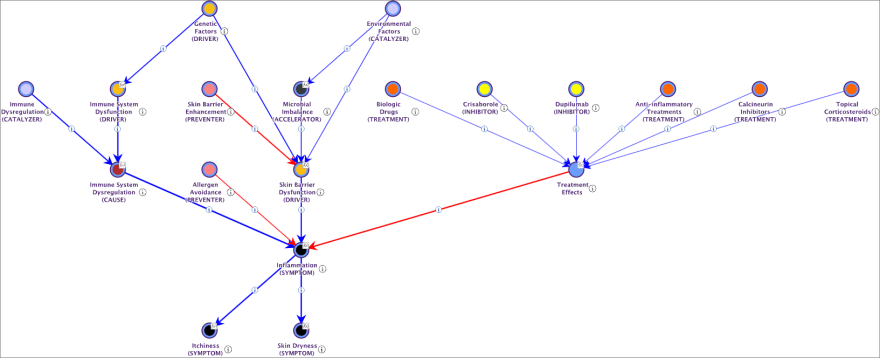

Generated Causal Bayesian Network Based on Elicited Dimensions
We conclude this section by utilizing the Hellixia Report Analyzer, which efficiently generates a concise summary of the (causal) Relationship Analysis Report for this latest network.
Report Generated from Analyzing the Causal Relations
